Custom Power Solutions Portfolio

Showcasing our expertise in DC/DC converters and AC/DC power supplies for the most demanding military, aerospace, and defense applications worldwide.

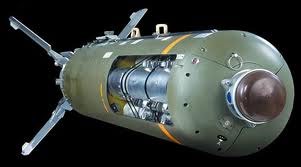

Sensor Fuzed Weapon System

• 40 per system
• ±15 VDC input
• 4 isolated/regulated outputs (5VDC ±5V, 300V)
• 3" × 1.5" × 0.3" dimensions
• 0.6 ounces weight
• High volume production
• MIL-STD-810 qualified for missile environment
• Operation -55°C to +85°C

Bradley Fighting Vehicle A3

• 8 per vehicle
• 16-40 VDC input
• 3 outputs (5, ±15VDC)
• High power density
• EMI filtering
• Nuclear event detector
• Planar magnetic design
• 4.6" × 2.4" × 0.78" dimensions
• 7 oz weight, 30 watts power

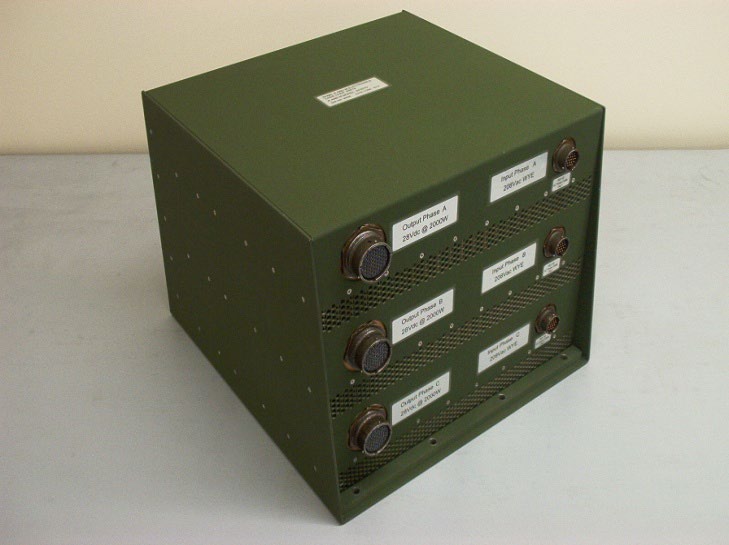

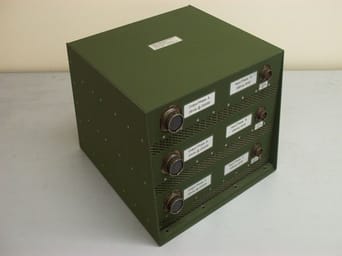

Army Shelter CPP

• Command Post Platform
• 3-Phase 208 VAC input
• 28 VDC output - 4500 watts
• Built-in test capabilities
• COTS design approach
• Power factor corrected 0.99pf
• MIL-STD-810 qualified for ground mobile
• MIL-STD-461 EMI qualified

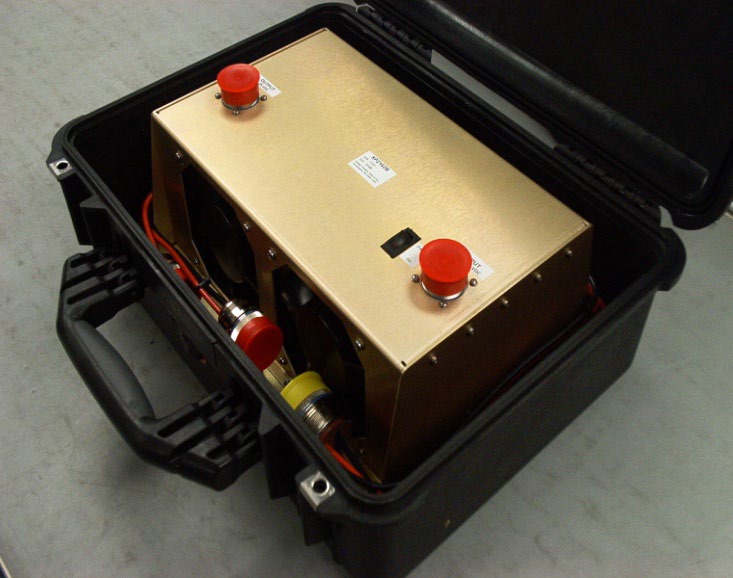

Navy Seal Delivery System

• 200-350 VDC input voltage
• 28 VDC output at 1.4 KW
• MIL-STD-810 requirements met
• Over voltage and over current protection
• EMI filtering MIL-STD-461
• Waterproof enclosure

70mm Rocket Application

• 5 VDC input
• Programmable 370 VDC output
• Ultra low noise output, ripple
• NAVMAT guidelines for derating
• MIL-STD-810 qualified for missile environment
• Shock, vibration, salt and humidity qualified

Mid Range Munition

• 5 VDC input
• Programmable 370 VDC output
• Ultra low noise output, ripple
• NAVMAT guidelines for derating
• MIL-STD-810 qualified for missile environment
• Shock, vibration, salt and humidity qualified

5th Generation Fighter Aircraft

• Input Voltage 205-305 VDC
• Output Voltage 405 VDC
• Low input correct during short circuit
• Over voltage protection
• MIL-STD-810 qualified for aircraft
• 200 Watts output power
• Operation -55°C to +100°C

TSP Low Voltage Power Supply

• VME cage card, 6U power supply
• 1,000 watts of power
• 5VDC, 3.3VDC and 12VDC outputs
• 28 VDC input
• MIL-STD-461 requirements met
• MIL-STD-810 qualified for UAV
• Operating temperature -50°C to +75°C

Refueler Application

• 115 VAC, 400Hz input
• MIL-STD-704A input requirements
• MIL-STD-461 EMI requirements
• Custom 19" rack mount system
• Power on and LED indicators
• MIL-STD-810 qualified for airborne

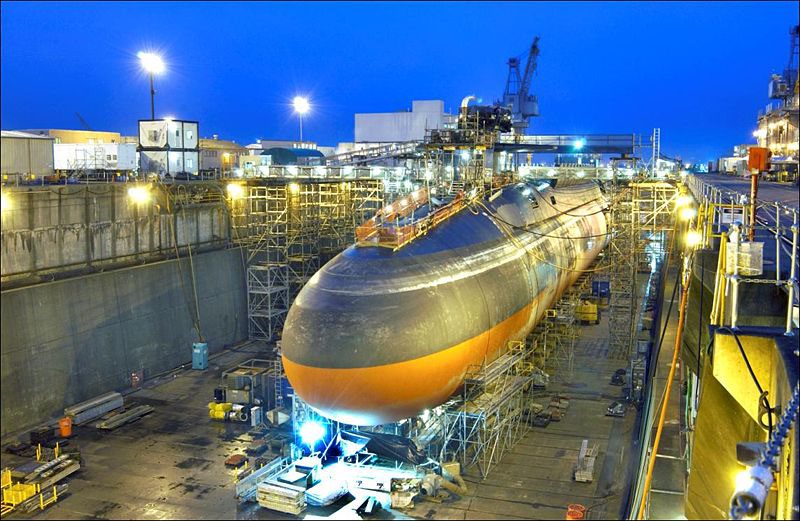

Nuclear Submarine Application

• 115 VAC input per MIL-STD-1399
• 5 Isolated/Regulated outputs
• NAVMAT guidelines for derating
• EMI filtering per MIL-STD-461
• Shipboard MIL-STD-810 qualified
• Custom output voltage monitoring

Enhanced Position Location Reporting System

• 90-260 VAC or 28VDC input
• MIL-STD-1275 compliant
• MIL-STD-461D qualified
• Active inrush circuitry
• Over voltage and over current protection
• MIL-STD-810 qualified
• 28VDC output at 200 watts

Precision Guided Mortar Munitions

• 5 VDC input
• Programmable 370 VDC output
• Ultra low noise output, ripple
• NAVMAT guidelines for derating
• MIL-STD-810 qualified for missile environment
• Shock, vibration, salt and humidity qualified

Aircraft Carrier Application

• 100-260 VAC, single phase @ 60Hz
• 700 watt single output
• MIL-STD-1399 compliant with 200ms hold-up
• MIL-STD-461E conducted/radiated compliant
• Operating temperature -40°C to 85°C
• MIL-STD-901D shock qualified
• MIL-STD-167-1 vibration qualified

Our Expertise Across Military & Aerospace

250+

Custom Applications Shipped

100%

MIL-STD Qualified

30+

Years Experience

Ready to Power Your Next Project?

From fighter jets to submarines, our custom power solutions have been trusted by the world's most demanding military and aerospace applications. Let's discuss your requirements.
